产品展示/ PRODUCTS

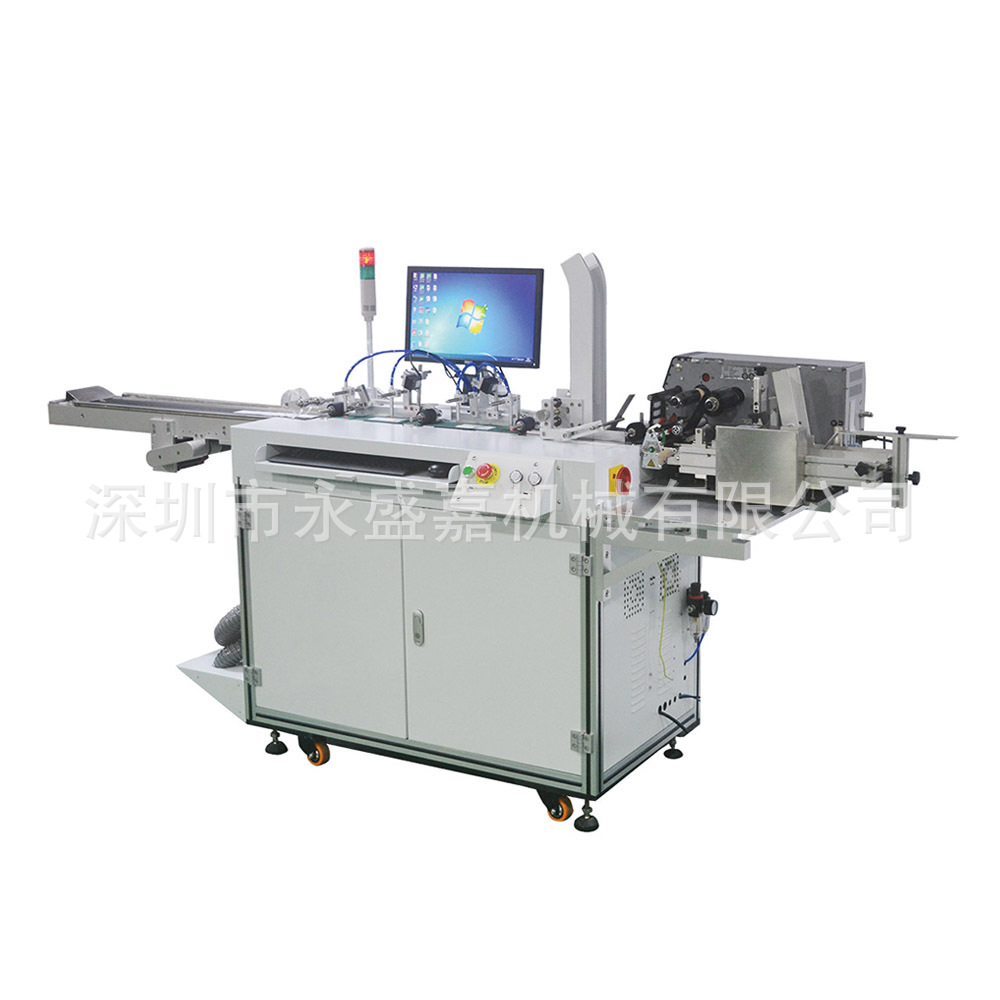

产品名称: WS-812 Single Card/Tag RFID Label Encode and Detection Machine
机器型号: WS-812
详情信息:


This equipment is suitable for the singe hand-Tag, card,ticket,care label to automatic feeding,encoding,detecting.Adopt vacuum feeder with high separation efficiency.Option with double station for RFID encoding and detecting to ensure accuracy.With Eliminate function when detecting bad product. Option with barcode scanner to realize the barcode printing with EPC data accordingly.

With stacking and counting function of the stack space.Option with Printer to realize printing,barcode scanning RDID encoding,RFID detecting in one-time completion.Option with care label feeding to realize RFID care label encode and detecting.User can develop the RFID encoded and detec-tion software to realize encoding and detecting.


Main Features

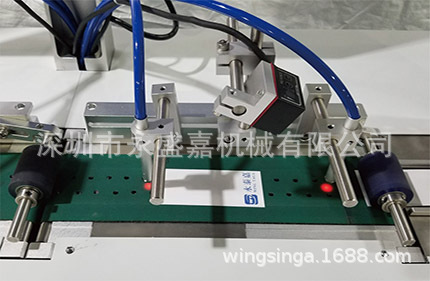

Double staion RFID encoding & detecion,barcode scanner





Damage rejecting device

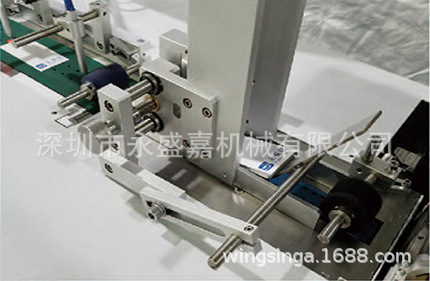

Auto feeder

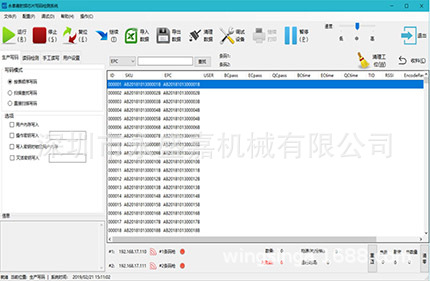

WT RFID encode and detection system



Lalel Sample

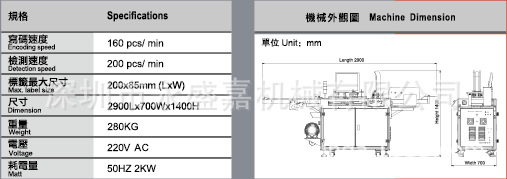

Specifications and Machine Dimension
