产品展示/ PRODUCTS

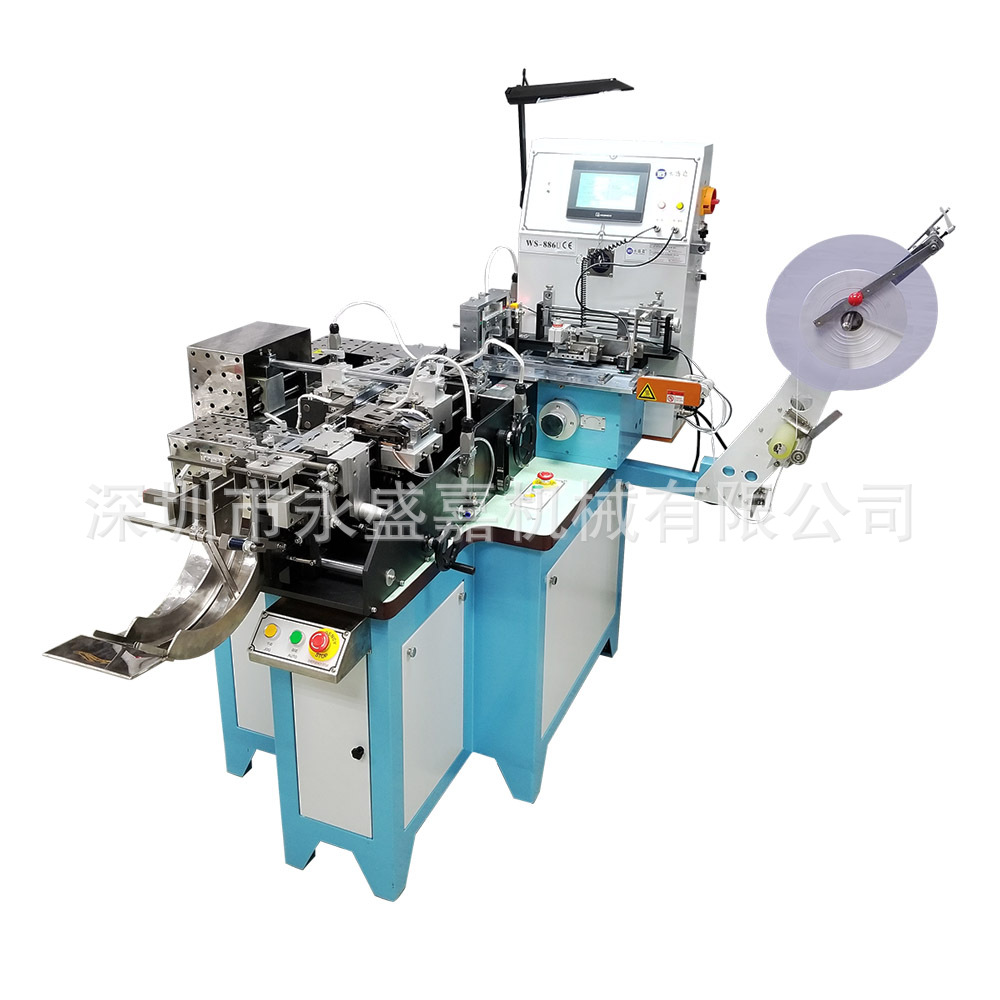

产品名称: Wingsinga Automatic Cutting and Folding Machine WS-886U+WS-886UR Ultrasonic Multi-Function Label Cutting & Folding Machine
机器型号: WS-886U+WS-886UR
详情信息:


Mwdel WS-886U/WS-886UR is designed specially for"Centre Folding Affer Two-End Folding ". It may Also be used for the production of uneven Two-End Fold Envelop and Centre Fold The Tooling Change is simple,and with high Performance on all the folding types.


Fold Metho:Book Cover Fold、End Fold、Center Fold、Envelop fold、Mitre Fold ; Cutting Mathod:Ultrasonic、Hot Cut(Option) 、Cold Cut(Option)

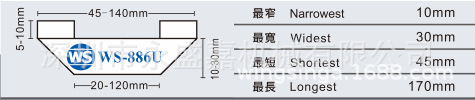

Book Cover Fold and Allowable Unfolded Size For Book Cover Fold

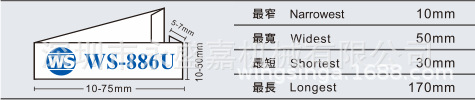

End Fold and Allowable Unfolded Size For End Fold

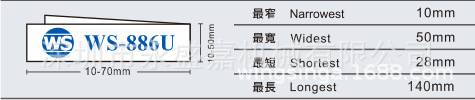

 Center Fold and Allowable Unfolded Size For Center Fold



Envelop fold and Allowable Unfolded Size For Envelop fold

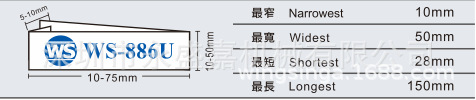

Mitre Fold and Allowable Unfolded Size For Mitre Fold

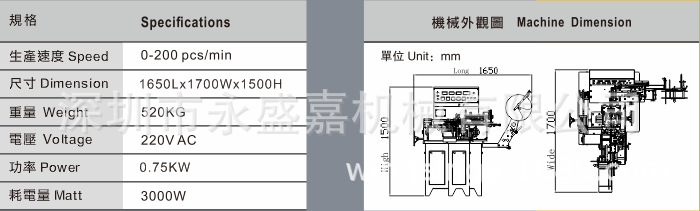

Specifications and Machine Dimension
