本设备的主要功能是RFID乾lnlay和湿lnlay标签复合、复合后工序模切以及吊牌生产，可以两层或者三层标签复合生产，复合速度可达60米每分钟，配合乾lnlay定位切断真空毂转贴及热熔胶涂布机构，可实现RFID湿lnlay标签复合的高速生产，配合湿lnlay剥标真空毂转贴机构，可实现RFID湿lnlay标签复合的高速生产，可以选配高速磁性辊模切机构，实现标签复合后工序模切以及吊牌生产

This equipment is suitable for RFID dry inlay or wet inlay multilayer automatic lamination and die cutting tomake RFID labels,tags, tickets,cards .lamination speed reaches 60 meters per minute,assort with dry inlay positioning and cutting vacuum roller device and hot melt device,can be realized RFID dry inlay label high-speedlaminate.Assort with wet inlay labeling and vacuum rollr device,can be realized RFID wet inlay label high-speed laminate. OPtion with high speed magnetic roll die cutting device, can be realized to make card.

设备特点

Main Features

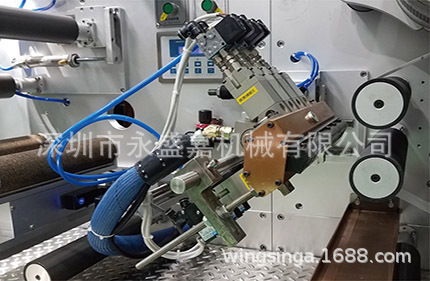

干lnlay切及真空毂

Dry cutting and vacuum device

热熔胶涂胶系统（2组）

Hot melt device (2 Set)

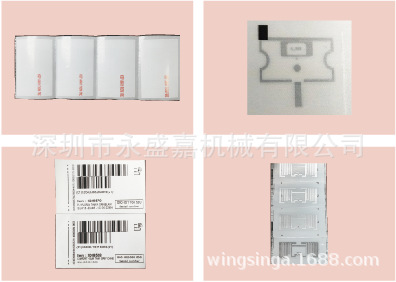

产品样板

Lalel Sample

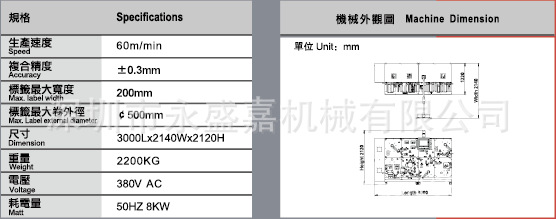

规格及机械外观图

Specifications and Machine Dimension
